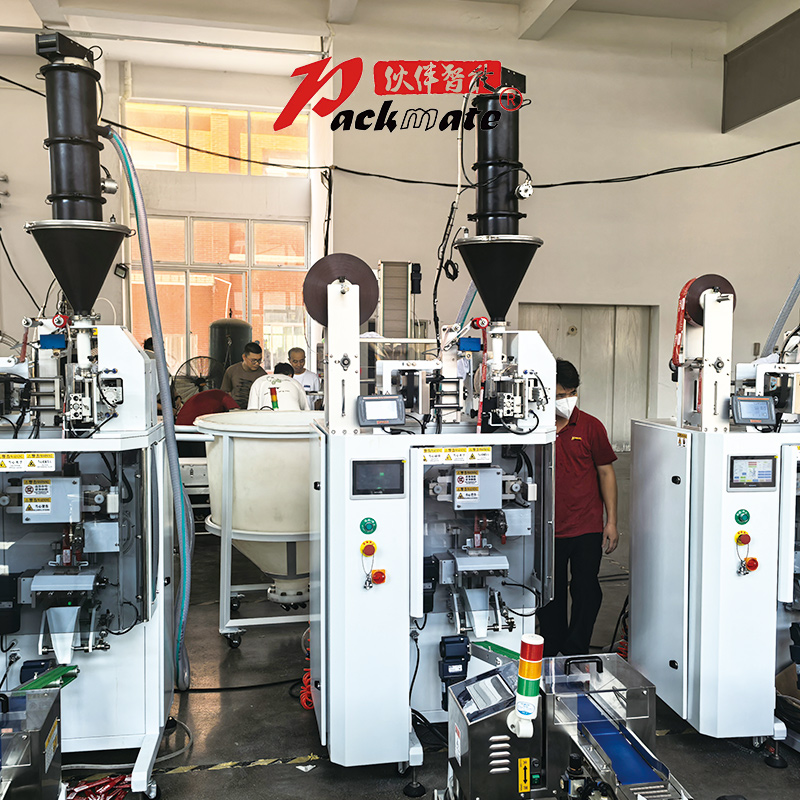

Spice Seasoning Powder Automatic Granule Pack Sachet Filling and Sealing Multi-Function Packaging Machines
Servo motor bag pulling, high precision, precise bag length control
Enhanced heat sealing mechanism, servo control, low noise, clear sealing pattern, strong sealing performance
Independent rotating cutter, convenient for changing bag length and adjusting cutter position
Measurement is synchronized with the host to ensure that the feeding at any speed matches the host

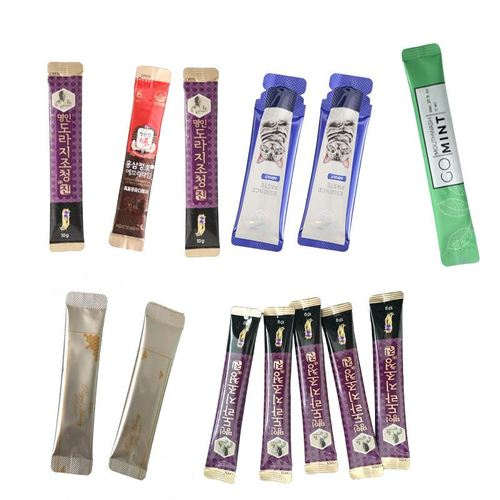

The machine is good for packing spices, curry, seasoning condiment etc.
The machine is specially designed for factory, durable, simple to operate and easy to maintain.
| Specification | |
| Model | DS100G | DS100P | DS100L |
| Packing Material | Granule | Powder | Liquid |
| Packing range | 1-50ml |
| Producing speed | 80-120 Bag/min | 70-110Bag/min | 70-100Bag/min |
| Bag style | Three side or Four Side |
| Max film width | Max:170mm |
| Bag width range | 25mm-85mm |
| Bag length range | Bag length=40-120mm |
| Cutting way | Rounded corners cutting,Sawtooth cutting,Flat cutting |
| Film diameter | Paper roll diameter75mm,Film outside diameter320mm |
| Film tickness | 0.04-0.1mm |
| Film material | Composite packaging material,for example:Polyester/pure aluminum foil/polyethylene |
| Power specification | 220V Phase,3KW | 220V Phase,4KW | 220V Phase,3.5KW |
| Air pressure and air consumption | 0.7mpa,0.6m³/Min |
| Outer dimension | 1300x1300×2650 | 1300x1300×2550 | 1300x1300x2500 |
| Equipment weigh | 350KG |
| The perfomance features will be some changed possibly according to different film,actual products.The specific parameter needs to confim with sales man |
